65Tb158.925

Terbium

Lanthanide · Period 6 · f-block

The green in fluorescent light and the muscle of sonar

Atomic mass
158.925 u
State at 25 °C
Solid
Electronegativity
1.1
Melting point
1,355.9 °C
Boiling point
3,122.9 °C
Configuration
[Xe] 4f9 6s2
Building atom…
65 protons 94 neutrons 65 electrons

Nucleus drawn at reduced count for clarity. Drag to rotate.

Terbium, explained

Video lesson in production

Bhavya’s explainer for this element will play here.

Overview

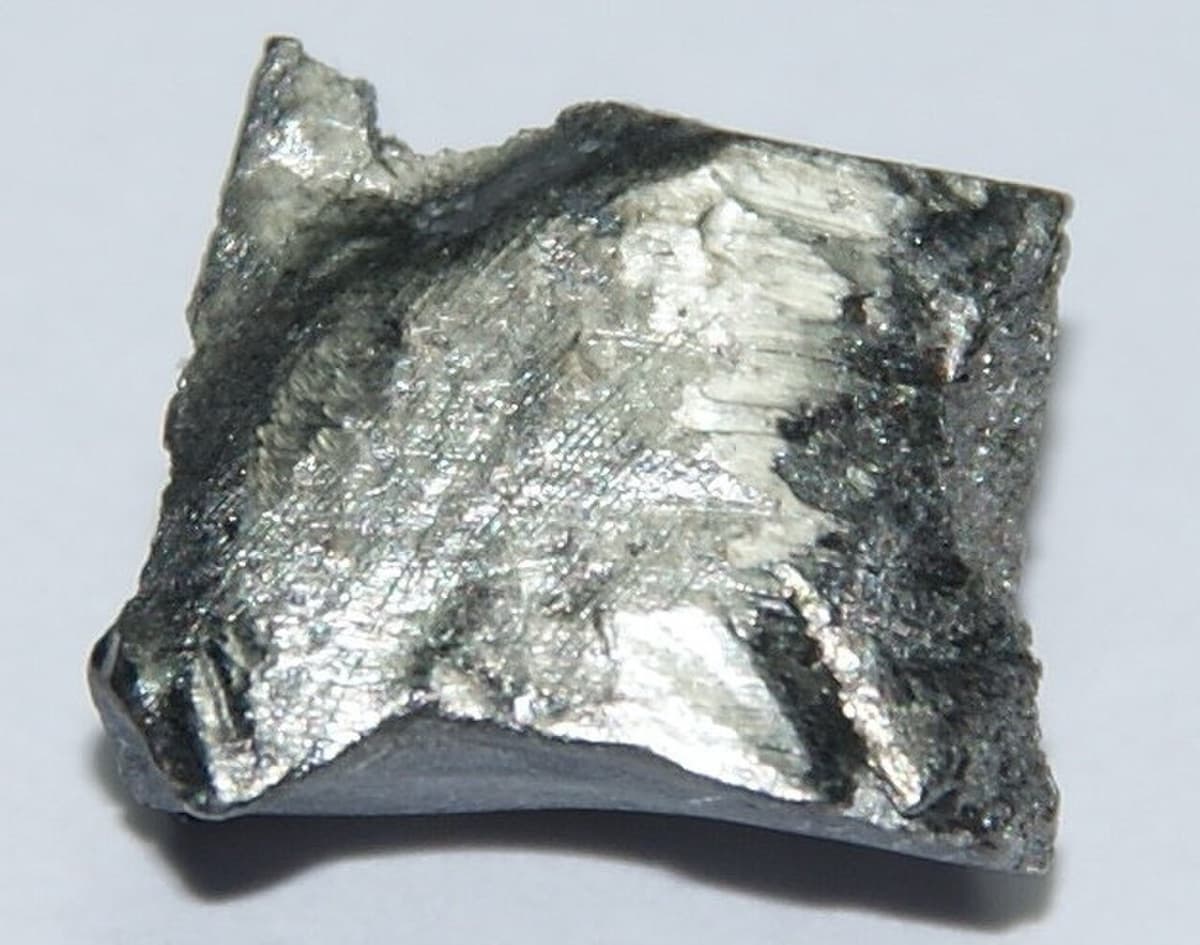

Terbium is a soft, silvery lanthanide with the configuration [Xe]4f9 6s2. It normally forms Tb3+, but unlike most lanthanides it can also reach the +4 state, because removing one more electron leaves the stable half-filled 4f7 shell. That is why heating terbium in air gives the dark brown mixed oxide Tb4O7, which contains both Tb3+ and Tb4+, rather than a simple Tb2O3.

The Tb3+ ion emits a strong, pure green light near 545 nanometres when excited by ultraviolet radiation or electrons. Terbium-activated phosphors supply the green component in tri-phosphor fluorescent lamps, and since the eye is most sensitive to green, this one element provides much of the lamp's apparent brightness. Combined with dysprosium and iron in the alloy Terfenol-D, terbium also gives the largest room-temperature magnetostriction known: the material visibly changes length in a magnetic field.

Discovery

In 1843 Swedish chemist Carl Gustaf Mosander split the earth yttria into three fractions, which he called yttria, erbia and terbia, all named after the village of Ytterby near Stockholm, whose quarry supplied the ore. Later chemists swapped the names of erbia and terbia, so the substance we now call terbium was originally Mosander's 'erbia'. Terbium was not obtained in reasonably pure form until ion-exchange methods appeared in the 1950s.

Where it’s found
About 1 part per million of Earth's crust; the main sources are the ion-adsorption clays of southern China, plus monazite and xenotime.
What it’s used for
  • Green lamp and display phosphors
  • Terfenol-D actuators and sonar
  • Magneto-optical recording
  • High-temperature magnets
In living things
No known biological role; its compounds have low toxicity but are not well studied.
Safety
Low hazard as bulk metal; dust can ignite, so handle powders away from flames.

How it compares

Where Terbium sits among all 118 elements on the trends that shape the table.

  • Electronegativity1.1Pauling

    #87 of 100 elements with data

  • Ionization energy566kJ/mol

    #84 of 104 elements with data

  • Atomic radius175pm

    #25 of 95 elements with data

  • Electron affinity112kJ/mol

    #23 of 109 elements with data

  • Density8.23g/cm³

    #54 of 114 elements with data

  • Melting point1,630K

    #36 of 110 elements with data

Density
8.23 g/cm³
Atomic radius
175 pm
Covalent radius
168 pm
Molar heat
28.91 J/(mol·K)
Appearance
silvery white
Discovered by
Carl Gustaf Mosander

Inside the atom

65 electrons arranged in 6 shells: 2 · 8 · 18 · 27 · 8 · 2.

Orbital diagram

1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p6 5s2 4d10 5p6 6s2 4f9 · shorthand [Xe] 4f9 6s2

  1. 1s2
  2. 2s2
  3. 2p6
  4. 3s2
  5. 3p6
  6. 4s2
  7. 3d10
  8. 4p6
  9. 5s2
  10. 4d10
  11. 5p6
  12. 6s2
  13. 4f9

Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Terbium bonds.

Ionization energies

Energy to remove each electron in turn, on a log scale. Each electron is harder to remove than the last, because the remaining ones feel more of the nucleus.

Signature reactions

The chemistry Terbium is known for.

  1. Redox · Combustion

    Oxidation to Tb4O7

    Terbium burns to form a dark brown oxide containing both Tb3+ and Tb4+. Its formula reflects terbium's ability to reach the +4 state, which is rare among the lanthanides.

    8Tb(s)+7O2(g)2Tb4O7(s)

    Conditions: heating in air

  2. Redox · Reduction

    Reduction of Tb4O7 with hydrogen

    Hydrogen removes the extra oxygen, reducing all the terbium to the +3 state and turning the dark brown powder white. This gives the pure Tb2O3 needed for phosphor manufacture.

    Tb4O7(s)+H2(g)2Tb2O3(s)+H2O(g)

    Conditions: heating in a hydrogen stream

  3. Redox · Single displacement

    Dissolving in hydrochloric acid

    Terbium dissolves readily in acid, releasing hydrogen and forming a colourless solution of Tb3+. Under a UV lamp, such solutions glow green.

    2Tb(s)+6HCl(aq)2TbCl3(aq)+3H2(g)

    Conditions: dilute acid, room temperature

Where you’ll meet it

  • Ytterby mine

    Ytterby mine

    The quarry at Ytterby, Sweden, yielded the ore in which terbium was found and gave the element its name.

    Photo: Wikimedia Commons
  • Compact fluorescent lamp

    Compact fluorescent lamp

    The green part of the light from tri-phosphor fluorescent lamps comes from terbium-doped phosphors.

    Photo: Wikimedia Commons
  • Sonar

    Sonar

    Terbium-based Terfenol-D transducers generate powerful low-frequency sound pulses for naval sonar.

    Photo: Wikimedia Commons
  • Carl Gustaf Mosander

    Carl Gustaf Mosander

    The Swedish chemist who discovered terbium in 1843.

    Photo: Wikimedia Commons
