94Pu244

Plutonium

Actinide · Period 7 · f-block

From Nagasaki to Mars: the metal of bombs and deep-space power

Atomic mass
244 u
State at 25 °C
Solid
Electronegativity
1.28
Melting point
639.4 °C
Boiling point
3,231.9 °C
Configuration
[Rn] 5f6 7s2
Building atom…
94 protons 150 neutrons 94 electrons

Nucleus drawn at reduced count for clarity. Drag to rotate.

Plutonium, explained

Video lesson in production

Bhavya’s explainer for this element will play here.

Overview

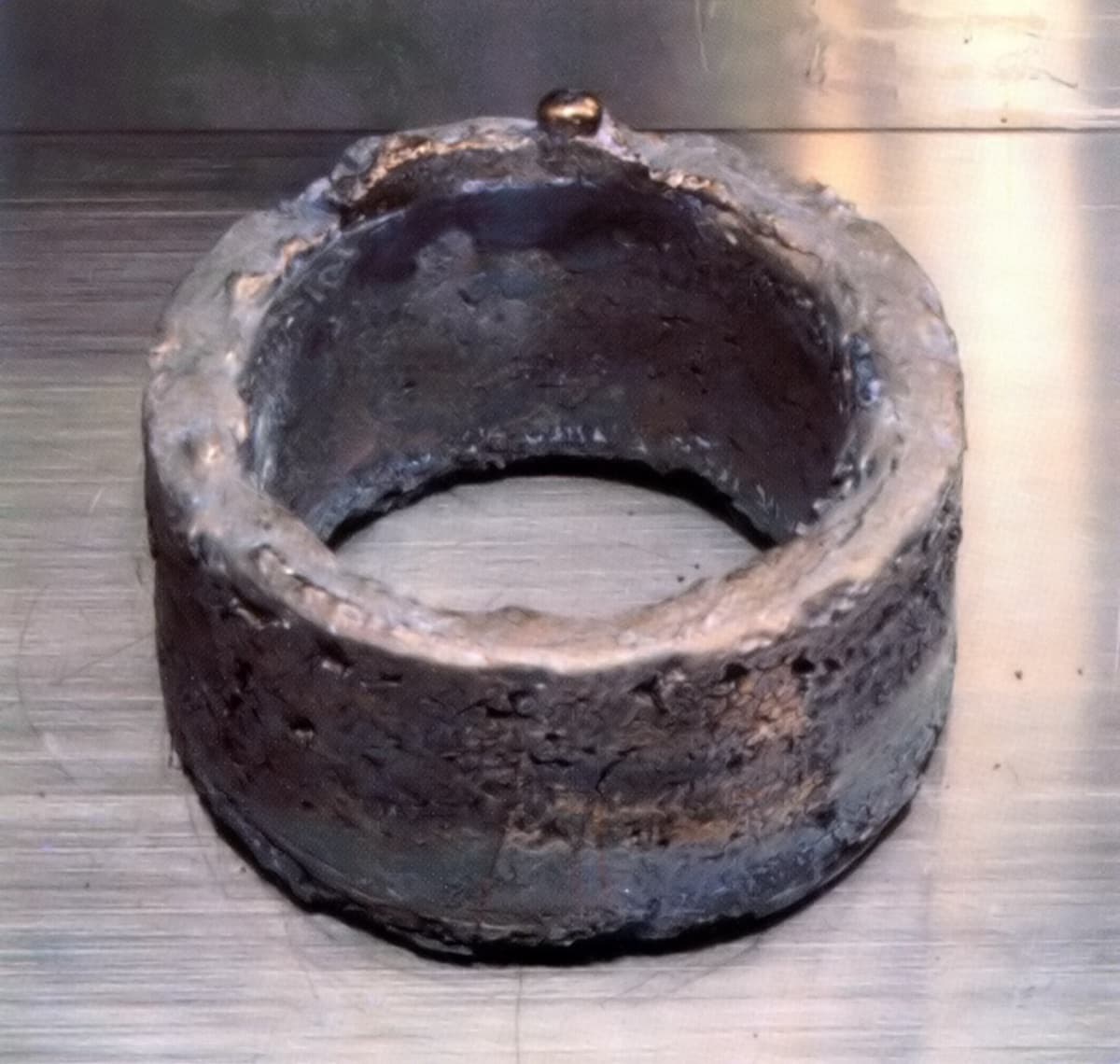

Plutonium is a silvery actinide metal that quickly tarnishes to a dull grey or olive coating. Its 5f electrons sit on the borderline between bonding and staying localised on each atom, which gives the metal strange physical behaviour. Plutonium has six solid phases at normal pressure, more than any other element, with densities ranging from 15.9 to 19.8 g/cm3. Engineers stabilise the malleable delta phase by alloying it with a little gallium. In solution, plutonium can exist in oxidation states +3 to +7.

Plutonium-239, with a half-life of 24,110 years, fissions readily with neutrons of any energy, which made it the core material of most nuclear weapons and a component of mixed-oxide reactor fuel. It is produced in every uranium reactor when uranium-238 captures neutrons. Plutonium-238, with an 88-year half-life, emits alpha particles but little penetrating radiation, and a pellet of its oxide glows red-hot from its own decay heat. This makes it the standard power source for spacecraft too far from the Sun for solar panels.

Discovery

Glenn Seaborg, Edwin McMillan, Joseph Kennedy and Arthur Wahl made plutonium-238 at Berkeley in December 1940 by bombarding uranium with deuterons, and confirmed it chemically in February 1941. It was named after Pluto, then counted as the planet beyond Neptune. Seaborg chose the symbol Pu instead of Pl as a joke, expecting objections that never came. Within four years, industrial reactors at Hanford were producing kilograms for the Manhattan Project.

Where it’s found
Plutonium is essentially absent in nature apart from tiny traces in uranium ores; it is made in nuclear reactors from uranium-238.
What it’s used for
  • Nuclear weapons
  • Spacecraft power generators
  • Mixed-oxide reactor fuel
  • Pacemaker batteries (historical)
In living things
Plutonium has no biological role; inhaled particles lodge in the lungs, and absorbed plutonium deposits in bone and liver, raising cancer risk.
Safety
Extremely hazardous if inhaled, and large amounts can go critical; handled only in glove boxes under strict security. Its alpha radiation is stopped by skin, so internal exposure is the main danger.

How it compares

Where Plutonium sits among all 118 elements on the trends that shape the table.

  • Electronegativity1.28Pauling

    #71 of 100 elements with data

  • Ionization energy585kJ/mol

    #75 of 104 elements with data

  • Atomic radius175pm

    #25 of 95 elements with data

  • Electron affinity-48.3kJ/mol

    #98 of 109 elements with data

  • Density19.8g/cm³

    #14 of 114 elements with data

  • Melting point913K

    #68 of 110 elements with data

Density
19.8 g/cm³
Atomic radius
175 pm
Covalent radius
172 pm
Molar heat
35.5 J/(mol·K)
Appearance
silvery white, tarnishing to dark gray in air
Discovered by
Glenn T. Seaborg

Inside the atom

94 electrons arranged in 7 shells: 2 · 8 · 18 · 32 · 24 · 8 · 2.

Orbital diagram

1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p6 5s2 4d10 5p6 6s2 4f14 5d10 6p6 7s2 5f6 · shorthand [Rn] 5f6 7s2

  1. 1s2
  2. 2s2
  3. 2p6
  4. 3s2
  5. 3p6
  6. 4s2
  7. 3d10
  8. 4p6
  9. 5s2
  10. 4d10
  11. 5p6
  12. 6s2
  13. 4f14
  14. 5d10
  15. 6p6
  16. 7s2
  17. 5f6

Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Plutonium bonds.

Signature reactions

The chemistry Plutonium is known for.

  1. Nuclear · Fission

    Fission of plutonium-239

    A plutonium-239 nucleus absorbs a neutron, splits into two fragments and releases about 200 MeV plus extra neutrons. Many different fragment pairs form; this is one representative split.

    239Pu+10n134Xe+103Zr+310n

    Conditions: neutron absorption; chain reaction

  2. Nuclear · Alpha decay

    Alpha decay of plutonium-238

    Each decay releases a 5.5 MeV alpha particle that is stopped inside the fuel, producing about 0.57 watts of heat per gram. Thermocouples convert this heat to electricity in spacecraft generators.

    238Pu234U+4He

    Conditions: spontaneous; half-life 87.7 years

  3. Redox · Metallothermic reduction

    Reducing plutonium fluoride to metal

    Calcium strips fluorine from plutonium tetrafluoride, leaving a button of plutonium metal beneath a calcium fluoride slag. A version of this reaction was used to make the metal for the first plutonium weapons.

    PuF4(s)+2Ca(s)Pu(s)+2CaF2(s)

    Conditions: sealed crucible, ignited with iodine booster
