14Si28.085

Silicon

Metalloid · Period 3 · Group 14 · p-block

From beach sand to the brains of every computer

Atomic mass
28.085 u
State at 25 °C
Solid
Electronegativity
1.9
Melting point
1,413.9 °C
Boiling point
3,264.9 °C
Configuration
[Ne] 3s2 3p2
Building atom…
14 protons 14 neutrons 14 electrons

Silicon, explained

Overview

Silicon sits directly below carbon in group 14 and also forms four bonds ([Ne]3s2 3p2), but its larger atom changes the chemistry. Silicon-silicon bonds are relatively weak and silicon rarely forms stable double bonds, while the silicon-oxygen bond is very strong. As a result, silicon in nature is almost always bonded to oxygen, in SiO4 tetrahedra that link into quartz and the silicate minerals making up most of Earth's crust. Silicon is the second most abundant element in the crust, about 28% by mass.

Pure silicon crystallizes in the same structure as diamond and is a semiconductor with a band gap of 1.12 eV: it conducts poorly when pure, but adding a few atoms of boron or phosphorus per million creates p-type or n-type material whose conductivity can be precisely controlled. Junctions between these regions form diodes, transistors and solar cells. Chip-grade silicon is purified to at least 99.9999999% and grown into large single crystals by the Czochralski method. Far larger quantities of less pure silicon go into aluminium alloys and silicone polymers.

Discovery

Antoine Lavoisier suspected in 1787 that silica was the oxide of an undiscovered element. Joseph Louis Gay-Lussac and Louis Jacques Thénard made impure amorphous silicon in 1811, but Jöns Jacob Berzelius is usually credited with its discovery in 1823, after heating potassium with potassium fluorosilicate and purifying the product. Henri Sainte-Claire Deville prepared crystalline silicon in 1854. The name was proposed by Thomas Thomson in 1817, from the Latin silex, flint, with an ending matching carbon and boron.

Where it’s found
Silicon makes up about 28% of the crust as silica and silicates; the element is produced by reducing quartz with carbon in electric arc furnaces.
What it’s used for
  • Computer chips
  • Solar cells
  • Glass and concrete
  • Silicone polymers
  • Aluminium alloys
  • Quartz oscillators
In living things
Silicon is not known to be essential for humans, though it may help bone and connective tissue in trace amounts. Diatoms, sponges, horsetails and grasses use silica as a structural material.
Safety
Elemental silicon has low toxicity, but breathing fine crystalline silica dust, for example from cutting stone or concrete, causes silicosis and lung cancer. Silane gas, used in chipmaking, ignites spontaneously in air.

How it compares

Where Silicon sits among all 118 elements on the trends that shape the table.

  • Electronegativity1.9Pauling

    #36 of 100 elements with data

  • Ionization energy787kJ/mol

    #33 of 104 elements with data

  • Atomic radius110pm

    #82 of 95 elements with data

  • Electron affinity134kJ/mol

    #17 of 109 elements with data

  • Density2.33g/cm³

    #90 of 114 elements with data

  • Melting point1,690K

    #34 of 110 elements with data

Density
2.33 g/cm³
Atomic radius
110 pm
Covalent radius
116 pm
Molar heat
19.789 J/(mol·K)
Appearance

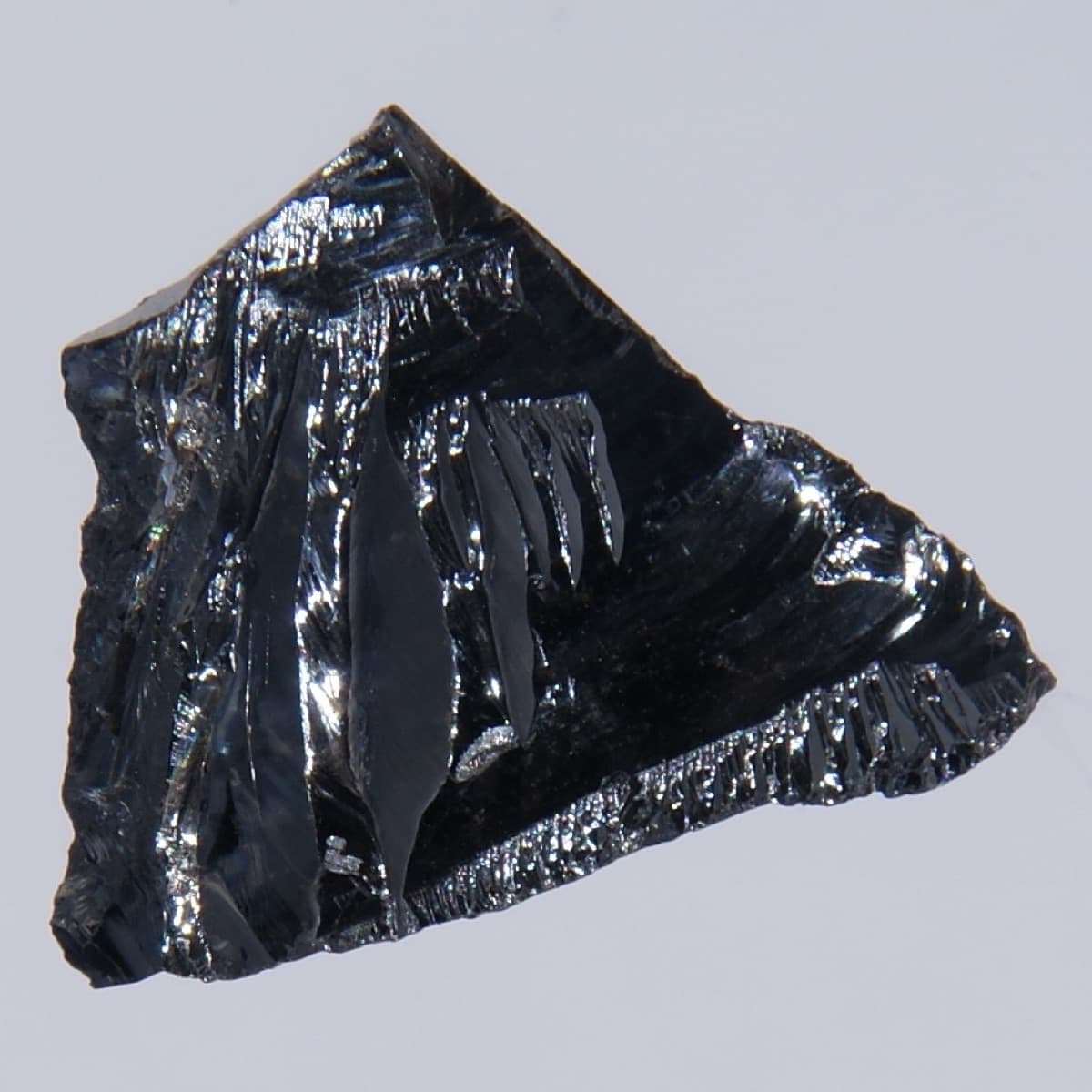

crystalline, reflective with bluish-tinged faces
Discovered by
Jöns Jacob Berzelius

Inside the atom

14 electrons arranged in 3 shells: 2 · 8 · 4.

Orbital diagram

1s2 2s2 2p6 3s2 3p2 · shorthand [Ne] 3s2 3p2

  1. 1s2
  2. 2s2
  3. 2p6
  4. 3s2
  5. 3p2

Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Silicon bonds.

Ionization energies

Energy to remove each electron in turn, on a log scale. The biggest leap, from electron 12 to 13 (×4.7), is where the next electron has to come from a filled shell much closer to the nucleus.

Signature reactions

The chemistry Silicon is known for.

  1. Redox · Metallurgy

    Carbothermic reduction of quartz

    Quartz and coke are heated in an arc furnace, where carbon strips oxygen from silica and releases carbon monoxide. The product is metallurgical-grade silicon, about 98-99% pure. Most of it is used in aluminium alloys and to make silicones.

    SiO2(s)+2C(s)Si(l)+2CO(g)

    Conditions: electric arc furnace, about 2000 °C

  2. Redox · Purification

    Siemens process deposition

    Metallurgical silicon is converted to trichlorosilane, which is distilled to remove impurities and then reduced with hydrogen. Ultra-pure polysilicon grows on hot silicon rods. This material is melted and pulled into single crystals for chips and solar cells.

    SiHCl3(g)+H2(g)Si(s)+3HCl(g)

    Conditions: about 1100 °C on heated silicon rods

  3. Acid-base · High temperature

    Glassmaking

    Soda ash reacts with sand, releasing carbon dioxide and forming sodium silicate, which lowers the melting point of the mix. With added lime, this produces ordinary soda-lime glass used in windows and bottles. The silicate network cools into an amorphous solid rather than a crystal.

    Na2CO3(s)+SiO2(s)Na2SiO3(l)+CO2(g)

    Conditions: about 1500 °C

Where you’ll meet it

  • Integrated circuit

    Integrated circuit

    Billions of transistors are etched into a single chip of ultra-pure crystalline silicon.

    Photo: Wikimedia Commons
  • Quartz

    Quartz

    Quartz, crystalline silicon dioxide, is one of the most common minerals in Earth's crust.

    Photo: Wikimedia Commons
  • Solar panel

    Solar panel

    Most solar panels use silicon cells that convert sunlight directly into electricity.

    Photo: Wikimedia Commons
  • Silicon Valley

    Silicon Valley

    The San Francisco Bay Area tech hub is named after the element at the heart of its chips.

    Photo: Wikimedia Commons
