ChemSphere
15P30.974

Phosphorus

Reactive nonmetal · Period 3 · Group 15 · p-block

The light-bearer that powers every living cell

Atomic mass
30.974 u
State at 25 °C
Solid
Electronegativity
2.19
Melting point
44.2 °C
Boiling point
—
Configuration
[Ne] 3s2 3p3
Building atom…
15 protons 16 neutrons 15 electrons

Phosphorus, explained

Overview

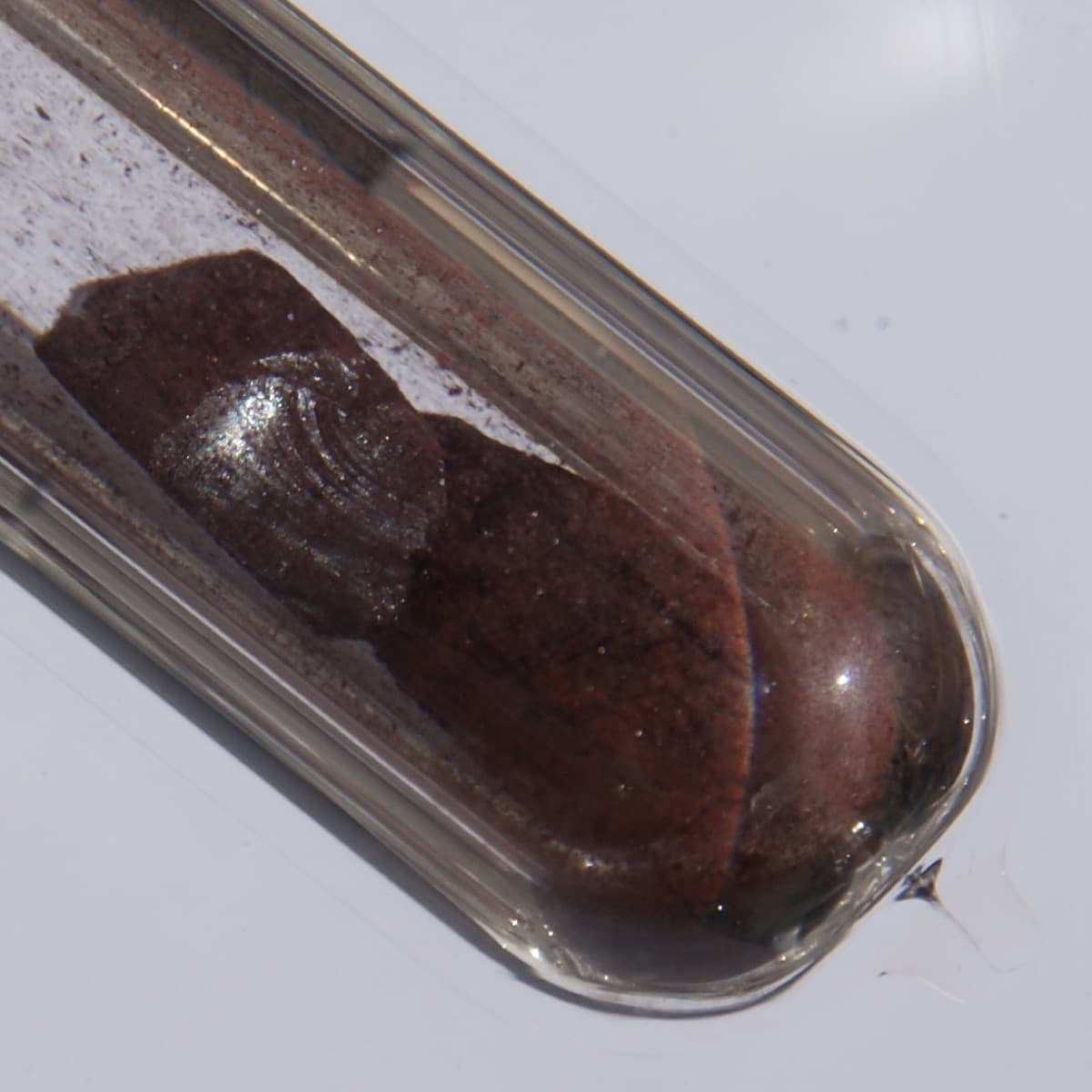

Phosphorus has five valence electrons ([Ne]3s2 3p3), sitting below nitrogen in group 15. Unlike nitrogen, it does not form strong multiple bonds, so instead of a diatomic gas, elemental phosphorus forms single-bonded structures. White phosphorus consists of P4 tetrahedra whose 60° bond angles are badly strained, so it is highly reactive: it ignites in air at about 30 °C and glows in the dark as it slowly oxidizes. Heating it converts it to red phosphorus, a much more stable polymer, and high pressure gives black phosphorus, which is layered like graphite.

In nature, phosphorus is found almost entirely as phosphate, PO4 3-, and it is essential to life: phosphate groups form the backbone of DNA and RNA, carry energy in ATP and make up the membranes around every cell. Bones and teeth are largely calcium phosphate. Because crops remove phosphorus from soil, most mined phosphate rock goes into fertilizers, and about 70% of known reserves lie in Morocco and Western Sahara. Phosphate washing off farmland into lakes can feed algal blooms that starve the water of oxygen.

Discovery

In 1669 Hennig Brand, a Hamburg merchant and alchemist searching for the philosopher's stone, boiled down large quantities of urine and heated the residue. He obtained a white, waxy substance that glowed in the dark. Brand is the first person known by name to have discovered an element. The name comes from the Greek phosphoros, 'light-bearer', which was also an ancient name for Venus as the morning star.

Where it’s found
Phosphorus is mined as phosphate rock, mainly apatite minerals in Morocco, China and the United States; the element is made by heating phosphate rock with sand and coke in an electric furnace.
What it’s used for
  • Phosphate fertilizers
  • Safety matches
  • Food additives
  • Flame retardants
  • Water-softening detergents
  • Lithium iron phosphate batteries
In living things
Phosphorus is essential: it is part of DNA, RNA, ATP and phospholipid membranes, and about 85% of the body's phosphorus is in bones and teeth as calcium phosphate.
Safety
White phosphorus is highly toxic and ignites spontaneously in air, causing deep, slow-healing burns; it is stored under water. Red phosphorus is far less hazardous but still flammable.

How it compares

Where Phosphorus sits among all 118 elements on the trends that shape the table.

  • Electronegativity2.19Pauling

    #23 of 100 elements with data

  • Ionization energy1,010kJ/mol

    #14 of 104 elements with data

  • Atomic radius100pm

    #85 of 95 elements with data

  • Electron affinity72kJ/mol

    #40 of 109 elements with data

  • Density1.82g/cm³

    #96 of 114 elements with data

  • Melting point317K

    #92 of 110 elements with data

Density
1.82 g/cm³
Atomic radius
100 pm
Covalent radius
111 pm
Molar heat
23.824 J/(mol·K)
Appearance
colourless, waxy white, yellow, scarlet, red, violet, black
Discovered by
Hennig Brand

Inside the atom

15 electrons arranged in 3 shells: 2 · 8 · 5.

Orbital diagram

1s2 2s2 2p6 3s2 3p3 · shorthand [Ne] 3s2 3p3

  1. 1s2
  2. 2s2
  3. 2p6
  4. 3s2
  5. 3p3

Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Phosphorus bonds.

Ionization energies

Energy to remove each electron in turn, on a log scale. The biggest leap, from electron 13 to 14 (×4.6), is where the next electron has to come from a filled shell much closer to the nucleus.

Signature reactions

The chemistry Phosphorus is known for.

  1. Redox · Combustion

    Burning white phosphorus

    White phosphorus bursts into flame in air, producing dense white smoke of phosphorus pentoxide. The oxide reacts with water to form phosphoric acid. Military smoke screens and incendiary munitions have exploited this reaction.

    P4(s)+5O2(g)P4O10(s)

    Conditions: spontaneous in air above about 30 °C

  2. Redox · Industrial

    Electric furnace production

    Phosphate rock, sand and coke are heated together; silica binds the calcium as molten slag while carbon reduces phosphate to phosphorus vapour. The vapour is condensed under water as white phosphorus. Nearly all elemental phosphorus and its high-purity compounds are made this way.

    2Ca3(PO4)2(s)+6SiO2(s)+10C(s)P4(g)+6CaSiO3(l)+10CO(g)

    Conditions: electric arc furnace, about 1500 °C

  3. Acid-base

    Making superphosphate fertilizer

    Insoluble phosphate rock is treated with sulfuric acid to form water-soluble calcium dihydrogen phosphate that plants can absorb. The mixture with gypsum is sold as superphosphate. John Bennet Lawes patented the process in 1842, founding the artificial fertilizer industry.

    Ca3(PO4)2(s)+2H2SO4(aq)Ca(H2PO4)2(s)+2CaSO4(s)

    Conditions: room temperature, ground rock

Where you’ll meet it

  • Match

    Match

    Striking a match rubs its head against red phosphorus on the box, which ignites the head.

    Photo: Wikimedia Commons
  • DNA

    DNA

    The two strands of the double helix are held together by backbones of alternating sugar and phosphate groups.

    Photo: Wikimedia Commons
  • Apatite

    Apatite

    Apatite, a calcium phosphate mineral, is the main ore of phosphorus and the mineral of bones and teeth.

    Photo: Wikimedia Commons
  • Fertilizer

    Fertilizer

    Phosphorus is one of the three main nutrients, with nitrogen and potassium, in agricultural fertilizers.

    Photo: Wikimedia Commons
