Bromine
Reactive nonmetal · Period 4 · Group 17 · p-block
The only nonmetal that is liquid at room temperature
- Atomic mass
- 79.904 u
- State at 25 °C
- Liquid
- Electronegativity
- 2.96
- Melting point
- -7.3 °C
- Boiling point
- 58.9 °C
- Configuration
- [Ar] 3d10 4s2 4p5
Bromine, explained
Video lesson in production
Bhavya’s explainer for this element will play here.
Overview

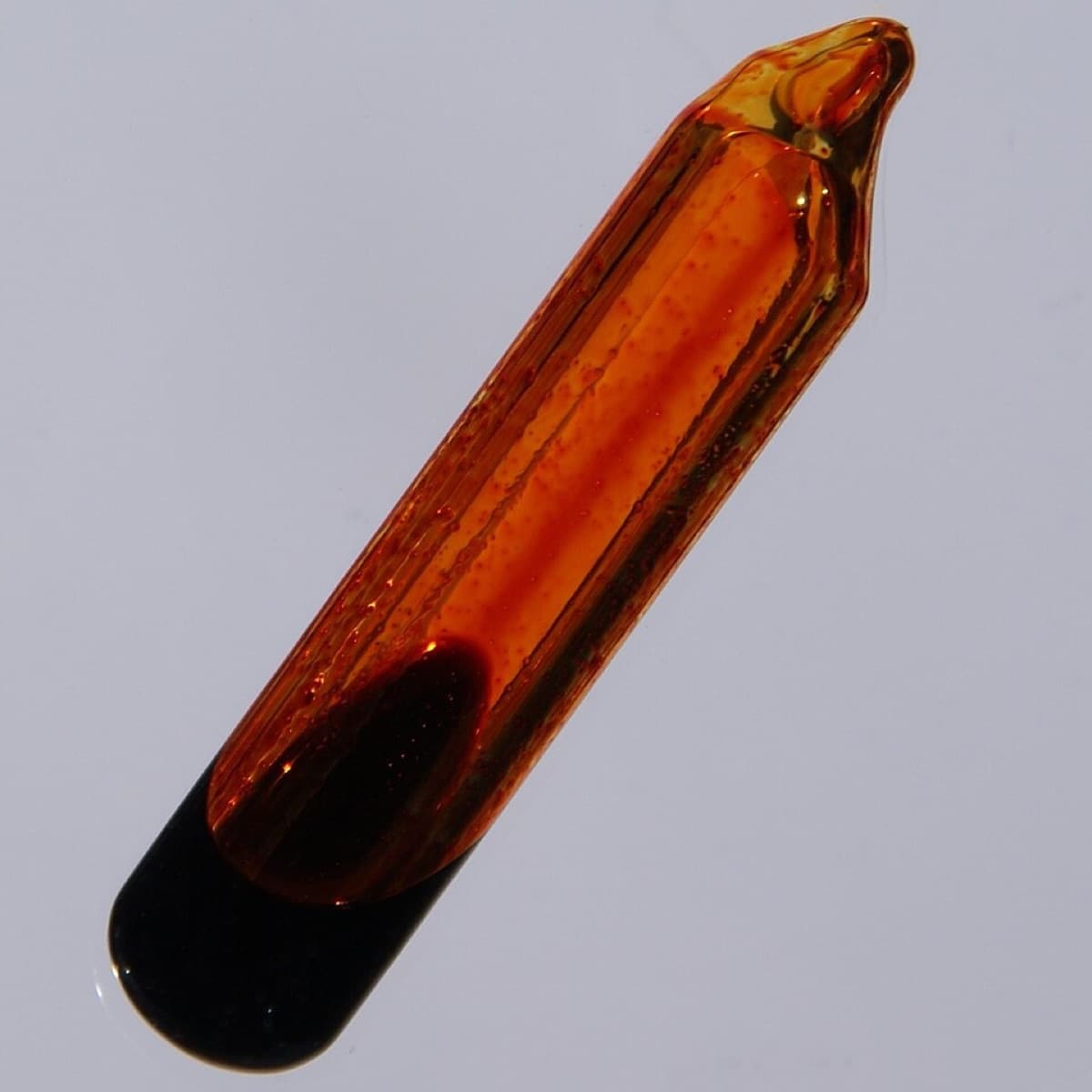

Bromine is a halogen with seven valence electrons ([Ar]3d10 4s2 4p5), one short of a noble-gas configuration, so it readily gains an electron to form the bromide ion, Br−. It is a strong oxidizing agent, though weaker than chlorine, which means chlorine can push bromide out of solution as bromine; this is how the element is extracted. Bromine exists as Br2 molecules. Their large electron clouds produce stronger attractive forces than in chlorine, so bromine is a dense, dark red-brown liquid that melts at −7.2 °C and boils at 58.8 °C, giving off choking orange fumes.
Mercury is the only other element that is liquid at room temperature. Bromine is extracted from seawater, which contains about 65 milligrams per liter, and from far richer brines such as the Dead Sea and underground deposits in Arkansas. Its largest uses are brominated flame retardants, dense calcium bromide fluids for drilling oil wells, water disinfection and pharmaceuticals. Methyl bromide, once a major soil fumigant, has been largely phased out under the Montreal Protocol because bromine atoms destroy stratospheric ozone very efficiently.
Discovery
Bromine was discovered independently by two young chemists: Carl Jacob Löwig, who extracted it from mineral spring water at Bad Kreuznach in 1825, and Antoine Jérôme Balard, who found it in brine from the salt marshes of Montpellier in 1826. Balard published first and is usually credited. The name comes from the Greek brōmos, meaning stench, after its sharp, irritating smell.
- Where it’s found
- Bromine occurs as bromide in seawater and concentrated brines such as the Dead Sea and Arkansas deposits, and is released from them by oxidation with chlorine.
- What it’s used for
- Flame retardants
- Oil-well drilling fluids
- Pool and spa disinfection
- Pharmaceuticals
- Mercury capture at coal plants
- Photographic film
- In living things
- Bromide ions are present throughout the body, and 2014 research showed that animals need bromide to build collagen IV scaffolds in tissue, suggesting it is essential. Elemental bromine, however, is highly toxic.
- Safety
- Liquid bromine is highly toxic and corrosive: its vapor damages the eyes and lungs, and the liquid causes deep, painful skin burns. It must be handled in a fume hood with resistant gloves.
How it compares
Where Bromine sits among all 118 elements on the trends that shape the table.
- Electronegativity2.96Pauling
#6 of 100 elements with data
- Ionization energy1,140kJ/mol
#11 of 104 elements with data
- Atomic radius115pm
#79 of 95 elements with data
- Electron affinity325kJ/mol
#3 of 109 elements with data
- Density3.1g/cm³
#86 of 114 elements with data
- Melting point266K
#98 of 110 elements with data
- Density
- 3.1 g/cm³
- Atomic radius
- 115 pm
- Covalent radius
- 114 pm
- Molar heat
- —
- Appearance
- —
- Discovered by
- Antoine Jérôme Balard
Inside the atom
35 electrons arranged in 4 shells: 2 · 8 · 18 · 7.
Orbital diagram
1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p5 · shorthand [Ar] 3d10 4s2 4p5
- 1s2
- 2s2
- 2p6
- 3s2
- 3p6
- 4s2
- 3d10
- 4p5
Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Bromine bonds.
Ionization energies
Signature reactions
The chemistry Bromine is known for.
Redox · Halogen displacement
Extraction from brine
Chlorine, the stronger oxidizer, converts bromide ions into bromine, turning the brine orange-brown. Air or steam then carries the volatile bromine out of the solution. Nearly all the world's bromine is made this way.
Conditions: acidified brine, then air or steam stripping
Addition
Bromine water test for alkenes
Orange bromine water loses its color when shaken with an alkene because bromine adds across the C=C double bond, here forming 1,2-dibromoethane. It is a simple classroom test for unsaturation.
Conditions: room temperature
Redox · Photochemical decomposition
Light-sensitive silver bromide
Light breaks down silver bromide crystals, producing tiny specks of silver metal. In photographic film these specks form a latent image that a developer amplifies into a visible picture.
Conditions: exposure to light
Where you’ll meet it
Dead Sea
Dead Sea brine contains about 5 grams of bromide per liter, making Israel and Jordan major bromine producers.
Photo: Wikimedia Commons
Tyrian purple
This ancient royal dye is 6,6'-dibromoindigo, made by murex sea snails.
Photo: Wikimedia Commons
Photographic film
Film is coated with silver bromide crystals that record an image when struck by light.
Photo: Wikimedia Commons
Flame retardant
Brominated flame retardants slow combustion in electronics casings, insulation and textiles.
Photo: Wikimedia Commons
