24Cr51.996

Chromium

Transition metal · Period 4 · Group 6 · d-block

The element behind ruby red, emerald green and gleaming chrome

Atomic mass
51.996 u
State at 25 °C
Solid
Electronegativity
1.66
Melting point
1,906.9 °C
Boiling point
2,670.9 °C
Configuration
[Ar] 3d5 4s1
Building atom…
24 protons 28 neutrons 24 electrons

Chromium, explained

Video lesson in production

Bhavya’s explainer for this element will play here.

Overview

Chromium breaks the expected filling pattern: its configuration is [Ar]3d5 4s1 rather than 3d4 4s2, because a half-filled d subshell, with five unpaired electrons, is especially stable. Its most important oxidation states are +3, found in green chromium(III) oxide and in very stable complexes, and +6, found in yellow chromate and orange dichromate, which are powerful oxidizing agents. The same Cr3+ ion makes rubies red and emeralds green; the difference comes from how strongly the surrounding crystal splits the energies of its d orbitals.

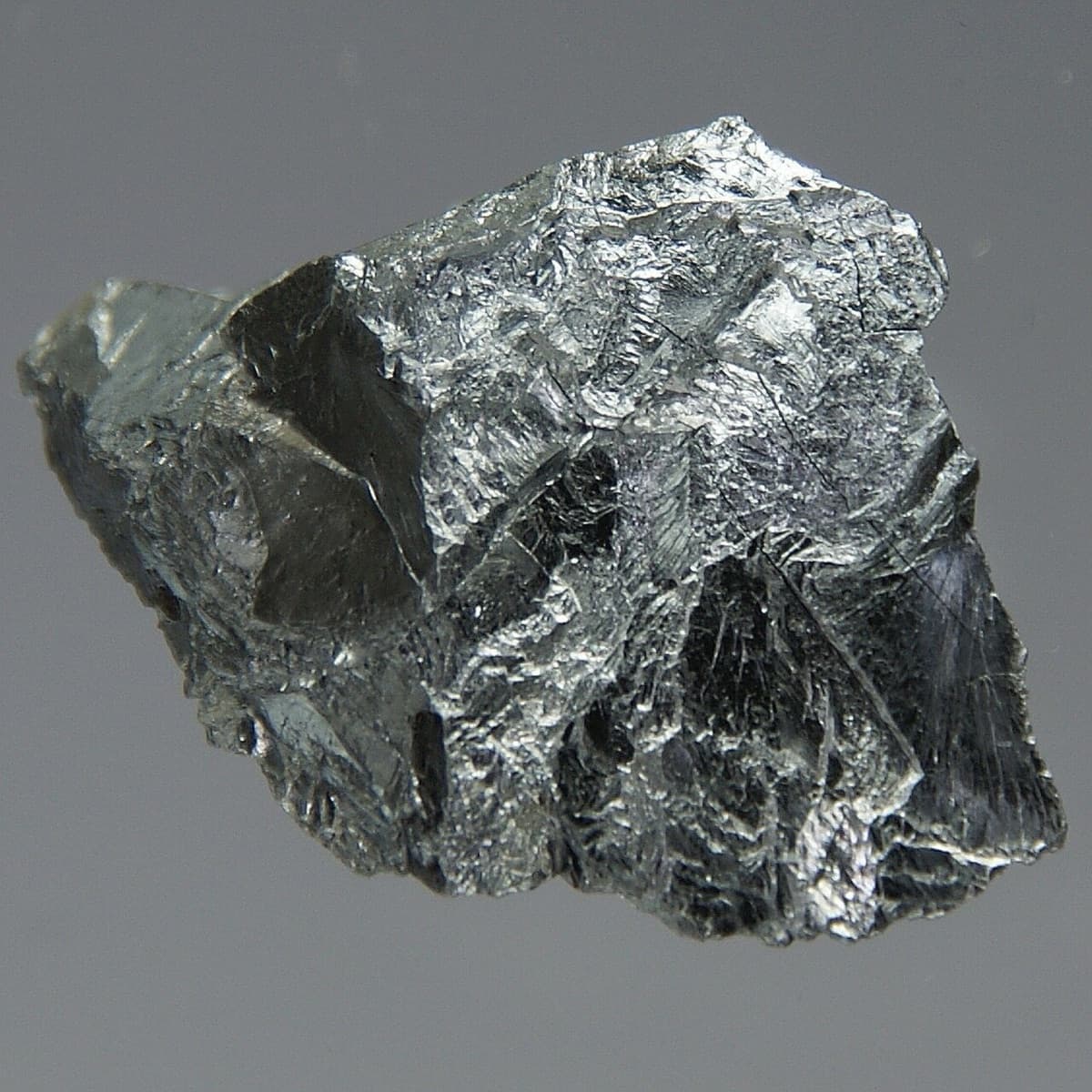

Chromium is a hard, lustrous, bluish-white metal that melts at 1907 °C. Like titanium and aluminium it protects itself with a thin oxide layer, and it passes that ability to steel: alloys with at least about 10.5 percent chromium form a self-healing Cr2O3 film and become stainless. Most of the chromium mined, as the ore chromite, ends up in stainless and alloy steels. The rest goes into plating, pigments, refractory bricks and leather tanning, though toxic hexavalent compounds are being phased out of many uses.

Discovery

In 1797 the French chemist Louis Nicolas Vauquelin analyzed crocoite, a brilliant orange-red lead mineral from the Ural Mountains known as Siberian red lead. He discovered a new oxide in it and in 1798 isolated the metal by heating the oxide with charcoal. He named it from the Greek chrōma, meaning color, because its compounds come in so many vivid hues.

Where it’s found
Chromium is mined almost entirely as chromite (FeCr2O4), with South Africa the largest producer, followed by Kazakhstan, Turkey and India.
What it’s used for
  • Stainless steel
  • Chrome plating
  • Leather tanning
  • Pigments
  • Refractory bricks
  • Superalloys
In living things
Chromium(III) was long thought to be an essential trace element for glucose metabolism, but recent reviews have found too little evidence to confirm this. Chromium(VI) compounds are toxic and cause cancer.
Safety
Hexavalent chromium compounds such as chromates, dichromates and chromic acid are corrosive, cause skin allergies and are known human carcinogens. The metal and chromium(III) compounds are far less hazardous.

How it compares

Where Chromium sits among all 118 elements on the trends that shape the table.

  • Electronegativity1.66Pauling

    #46 of 100 elements with data

  • Ionization energy653kJ/mol

    #54 of 104 elements with data

  • Atomic radius140pm

    #52 of 95 elements with data

  • Electron affinity65.2kJ/mol

    #42 of 109 elements with data

  • Density7.19g/cm³

    #62 of 114 elements with data

  • Melting point2,180K

    #16 of 110 elements with data

Density
7.19 g/cm³
Atomic radius
140 pm
Covalent radius
122 pm
Molar heat
23.35 J/(mol·K)
Appearance
silvery metallic
Discovered by
Louis Nicolas Vauquelin

Inside the atom

24 electrons arranged in 4 shells: 2 · 8 · 13 · 1.

Orbital diagram

1s2 2s2 2p6 3s2 3p6 4s1 3d5 · shorthand [Ar] 3d5 4s1

  1. 1s2
  2. 2s2
  3. 2p6
  4. 3s2
  5. 3p6
  6. 4s1
  7. 3d5

Each box is an orbital holding up to two electrons of opposite spin. Highlighted subshells hold the valence electrons that decide how Chromium bonds.

Ionization energies

Energy to remove each electron in turn, on a log scale. The biggest leap, from electron 22 to 23 (×4.3), is where the next electron has to come from a filled shell much closer to the nucleus.

Signature reactions

The chemistry Chromium is known for.

  1. Acid–base · Equilibrium

    Chromate–dichromate equilibrium

    Adding acid turns yellow chromate solution orange as dichromate forms; adding base reverses the change. Chromium stays in the +6 state throughout, so this is not a redox reaction. It is a standard demonstration of Le Chatelier's principle.

    2CrO42−(aq)+2H+(aq)Cr2O72−(aq)+H2O(l)

    Conditions: add acid or base to shift

  2. Redox · Organic oxidation

    Dichromate oxidation of ethanol

    Orange dichromate oxidizes ethanol to acetic acid and is itself reduced to green Cr3+. The clear color change was the basis of early breathalyzer tubes and is still used to test for primary and secondary alcohols.

    2Cr2O72−(aq)+3C2H5OH(aq)+16H+(aq)4Cr3+(aq)+3CH3COOH(aq)+11H2O(l)

    Conditions: acidified with sulfuric acid

  3. Redox · Metal extraction

    Aluminothermic reduction

    Aluminium strips oxygen from chromium(III) oxide in a thermite-type reaction that releases enough heat to melt the products. This is how high-purity, carbon-free chromium metal is produced.

    Cr2O3(s)+2Al(s)2Cr(s)+Al2O3(s)

    Conditions: ignition, highly exothermic

Where you’ll meet it

  • Ruby

    Ruby

    Ruby is aluminium oxide containing traces of chromium, which absorbs green and blue light and leaves a deep red.

    Photo: Wikimedia Commons
  • Crocoite

    Crocoite

    Crocoite, lead chromate, is the vivid orange mineral in which Vauquelin discovered chromium.

    Photo: Wikimedia Commons
  • Chrome plating

    Chrome plating

    A thin electroplated layer of chromium gives motorcycles and car trim their mirror-like, corrosion-resistant finish.

    Photo: Wikimedia Commons
  • Emerald

    Emerald

    Emerald is beryl colored green by traces of chromium and sometimes vanadium.

    Photo: Wikimedia Commons
